In this guide, i’ll explain How To disassemble Asus S46C to remove
RAM, hard drive, wireless card, keyboard, heat sink, cooling fan and
motherboard, refer on this guide, you can repair, upgrade, clean fan for
your Asus S46C.
remove two screws securing the service cover and remove the cover.
under the cover, we can access the hard drive and ram memory
remove the screws securing the hard drive module, lift up the black tape, then remove the hard drive module.
remove the screw and pull out the dvd drive.
pry up the bottom case with a pry bar
disconnect the speaker cable from motherboard, the bottom case can be removed.
now we can access the ram, wireless card, ssd, heat sink and cooling fan.
the Asus S46c lcd hinge

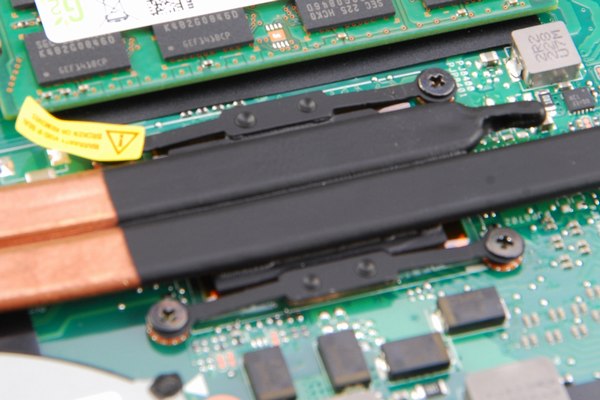

the Asus S46c heatsink
Asus S46c have two ram slots, come with a 4GB samsung ram memory
Asus S46c cooling fan
Asus S46c usb board
half size SSD and wireless card
the wireless card
remove two screws securing the service cover and remove the cover.
under the cover, we can access the hard drive and ram memory
remove the screws securing the hard drive module, lift up the black tape, then remove the hard drive module.
remove the screw and pull out the dvd drive.
pry up the bottom case with a pry bar
disconnect the speaker cable from motherboard, the bottom case can be removed.
now we can access the ram, wireless card, ssd, heat sink and cooling fan.
the Asus S46c lcd hinge
the Asus S46c heatsink
Asus S46c have two ram slots, come with a 4GB samsung ram memory
Asus S46c cooling fan
Asus S46c usb board
half size SSD and wireless card
the wireless card
