Apple mackbook air No Vcore voltage 820-3209

hi,

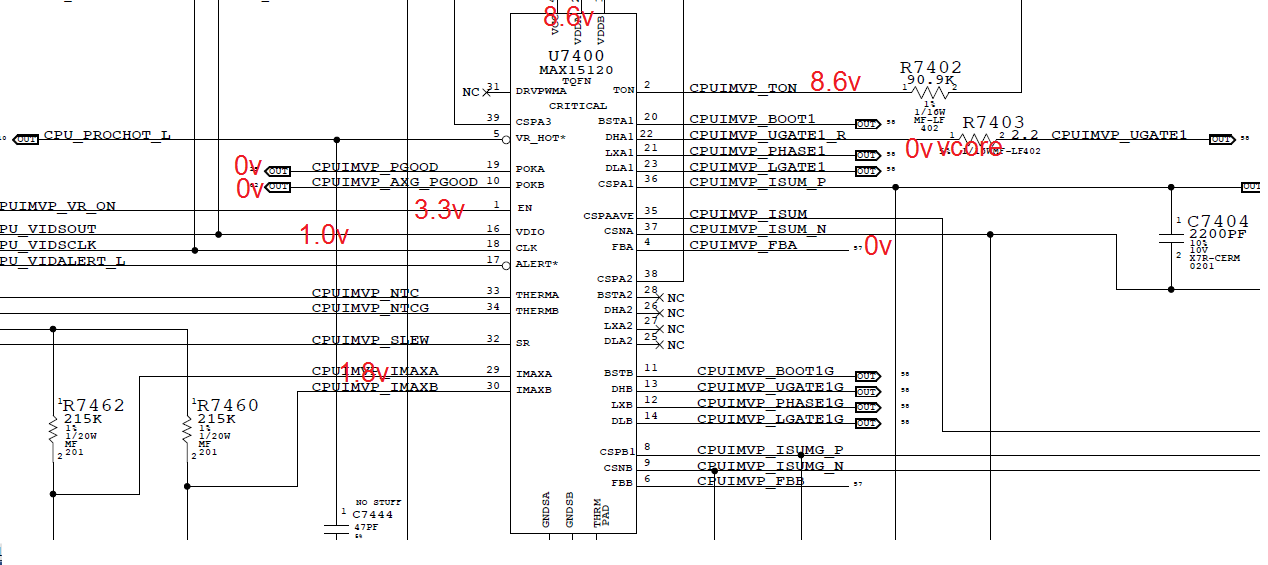

i hav mackbook air with same problem as you mention above, i hav attach the MAX15120 voltages levels,

Note :-
P5V_S0_CPUIMVP_VDD=5v
CPUIMVP_VR_ON=3.3v
..........................................
CPUIMVP_PGOOD =0v
CPUIMVP_AXG_PGOOD =0v
PPVCORE_S0_CPU=0v
CPU_VCCSENSE_P=0v
CPUIMVP_FBA=0v

Regards,
GL0gic
